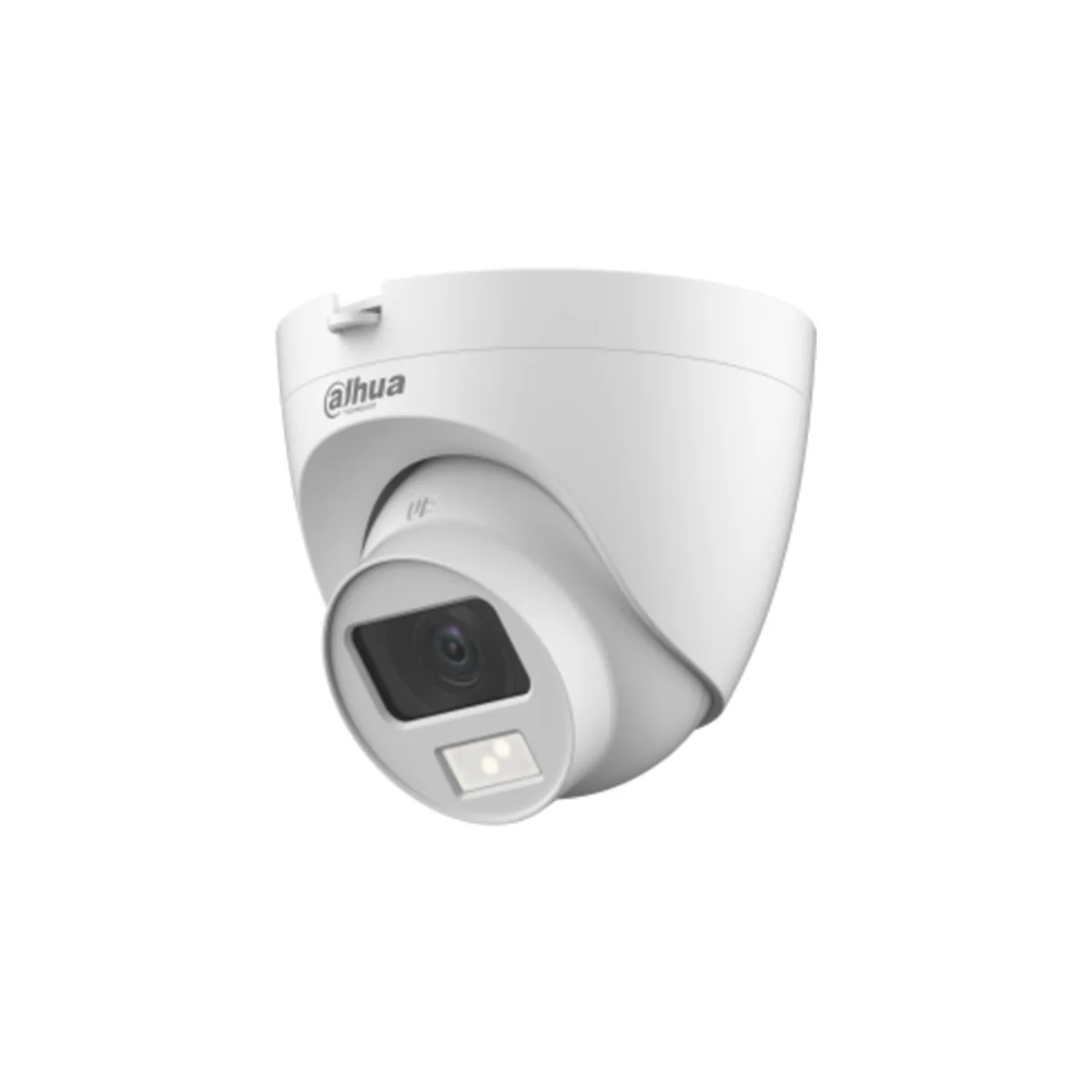

Dahua CCTV HAC-HDW1200CLQ-IL-A 2MP Smart Dual Light Color HDCVI Fixed-focal Eyeball Camera

The parameters and datasheets below can only be applied to1200-S6-IL series.
In order to use the Smart Dual Light HDCVI camera, the firmware of XVR must be upgraded to V4.001.0000004.1.R.220323 or later version.
Max. 30 fps@1080p.
. 3D NR.
Smart Dual Light.
⚫ 20 m illumination distance.
Super Adapt.
. Built-in mic.
• Quick-to-install eyeball saves installation time.
3.6 mm fixed lens (2.8 mm optional).
CVI/CVBS/AHD/TVI switchable.
IP67, 12 VDC.
Protection (IP67, Wide Voltage)
IP67: The camera passed a series of rigorous dust and immersion tests. Its enclosure is both dust-proof and waterproof, and can function normally while being immersed in 1 m deep water for up to 30 minutes. Wide voltage: The camera has +30% input voltage tolerance (for some power supplies) and a wide voltage range, making it suitable for a variety of outdoor scenarios.
4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals (video, audio*, data and power) which are simultaneously transmitted over a coaxial cable. Dual-way data transmission allows the HDCVI camera to interact with the XVR to perform various actions such as sending control signals and triggering alarms. HDCVI technology also supports PoC, which makes the camera easy and quick to install.
* Audio input is available for select HDCVI camera models.
Long Distance Transmission
HDCVI technology provides long distance transmission in real time without transmission loss. It supports transmission distances up to 700 m for 2-MP/5-MP/8-MP HD videos through coaxial cables, and up to 300 m through UTP cables. The results were obtained and verified through rigorous testing in Dahua’s test laboratory.
System Overview
The Lite Series is a great choice for consumers looking for high quality monitoring products at a reasonable price. Its low cost and high performance make it ideal for residential areas and SMB solutions. This series is equipped with a wide range of technologies, such as full-color and starlight, providing various solutions for different scenarios.
Functions
Smart Dual Light
With its smart dual light mechanism, the camera automatically turns on the white light when Perimeter Protection/SMD Plus function of AI XVR detects a target in the rule area to capture clear, vivid images. When the target leaves the rule area, the camera automatically switches over from the white light to the IR light to significantly reduce light pollution.
Easy Installation
HDCVI eyeball comes with a quick-to-install pedestal, which makes it easier to install than conventional eyeballs and reduces cost on time and labor.

Enhance your home security with this camera and buy the HDW1200CLQ Dahua camera from Orient CCTV!

This Dahua HDW1200CLQ smart camera system is designed to deliver exceptional performance and flexibility for various surveillance needs.

High-Quality Video Performance With Innovative Image Processing

Featuring a maximum frame rate of 30 fps at 1080p resolution, this camera ensures clear and detailed video footage, making it ideal for monitoring any environment. The 3D Noise Reduction (NR) technology enhances image clarity in different lighting conditions, boosting visibility during the nighttime with its Smart Dual-Light technology, supporting up to 20 meters of illumination distance.

User-friendly Design with Versatile Functionality

The camera’s Quick-to-Install Eyeball design saves time during setup, making it accessible for users of all experience levels. Equipped with a 3.6 mm fixed lens (with a 2.8 mm option) and capable of switching between CVI, CVBS, AHD, and TVI formats, this device provides comprehensive compatibility in various installations. Furthermore, it is housed in a durable IP67-rated casing, ensuring longevity in outdoor conditions.

Specs:

• 30 fps @ 1080p.
• 3D NR.
• Smart Dual Light.
• 20m illumination.
• Super Adapt.
• Built-in mic.
• Quick-install eyeball saves time.
• 6mm fixed lens (2.8mm optional).
• CVI/CVBS/AHD/TVI switchable.
• IP67
• 12 VDC

If you intend to purchase the HAC-HDW1200CLQ-IL-A camera from Orient CCTV, place your order now. The great news? You can also acquire other Dahua cameras from us!
