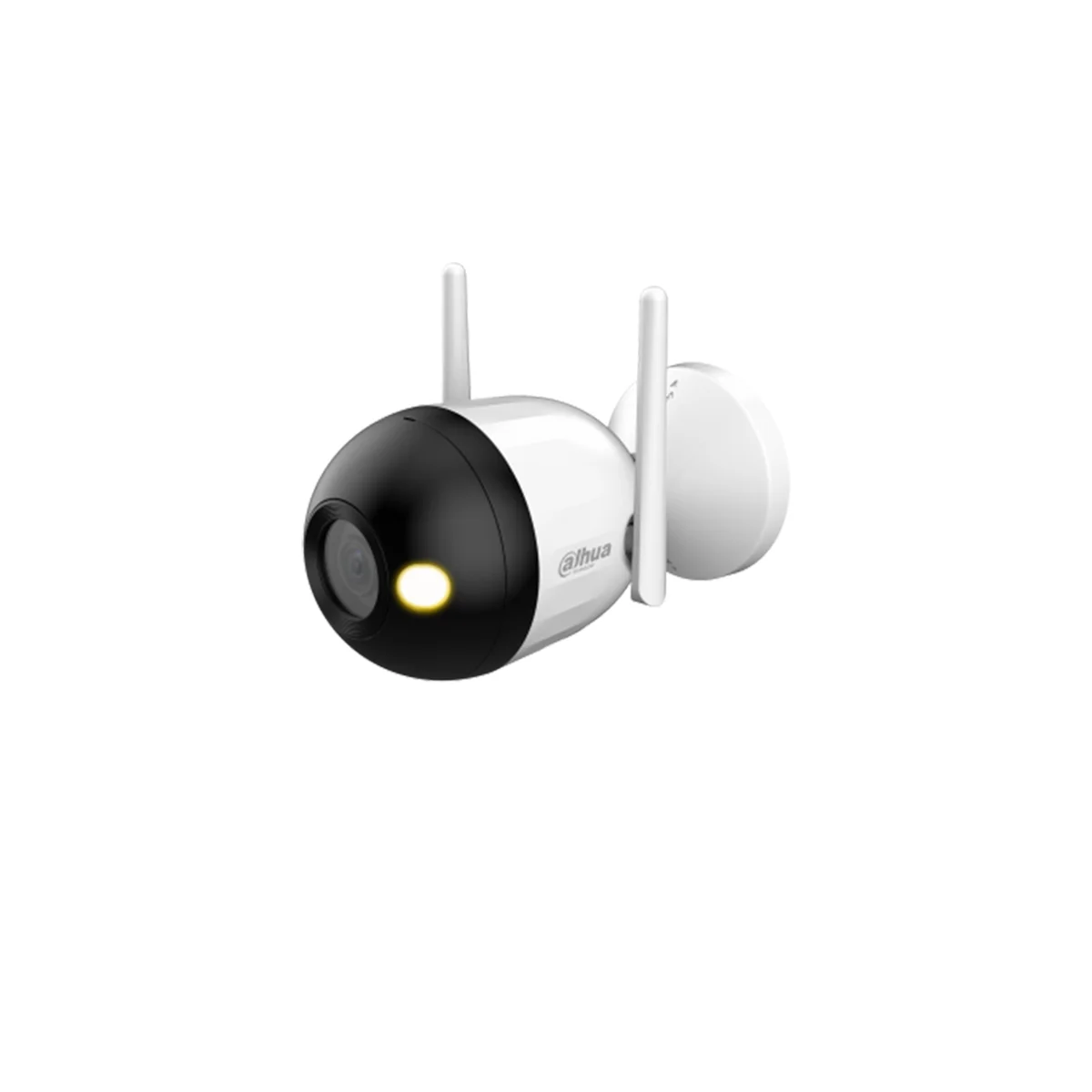

Dahua F4C-LED 4MP Full-color built-in Mic human detection Network WIFI Camera

Camera

Image Sensor

1/3″ CMOS

Max. Resolution

2560 (H) × 1440 (V)

ROM

16 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6(B/W, 30 IRE); 0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

Up to 30 m (98.53 ft) (Warm light)

Illuminator On/Off Control

Auto

Illuminator Number

2 (Warm light)

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm;3.6 mm

Max. Aperture

F1.6

Field of View

2.8 mm: H: 98°; V: 55°; D: 115° 3.6 mm: H: 78°; V: 41°; D: 94°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 1 m (3.28 ft) 3.6 mm: 1.7 m (5.58 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

61.2 m (200.78 ft)

24.5 m (80.38 ft)

12.2 m (40.03 ft)

6.1 m (20.01 ft)

3.6 mm

85.4 m (280.18 ft)

34.2 m (112.20 ft)

17.1 m (56.10 ft)

8.5 m (27.89 ft)

Intelligence

Human Detection

Support the classification and accurate detection of human

Video

Video Compression

H.264B; H.264; H.264H; H.265

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream: 2560 × 1440@(1–25/30 fps); sub stream: 640 × 480@(1–25/30 fps); *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

Resolution

4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–4096 kbps; H.265: 12 kbps–4096 kbps

Day/Night

Color/B/W

BLC

Yes

HLC

Yes

WDR

DWDR

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/180°

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; PCM; G.726

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; abnormal audio input; intensity change; SMD (human)

Network

Network Port

RJ-45 (10/100 Base-T)

Wi-Fi

IEEE 802.11b/g/n 2.4–2.4835 GHz, 2.4 G

SDK and API

Yes

Network Protocol

IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP; P2P

Interoperability

ONVIF (Profile S/Profile G); CGI

User/Host

20 (Total bandwidth: 64 M)

Storage

Micro SD card (support max. 256 GB)

Browser

IE; Chrome; Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Client

iOS;Android

Cyber Security

Configuration encryption; trusted execution; Digest; security logs; HTTPS; trusted upgrade; WSSE; trusted boot; account lockout; generation and importing of X.509 certification; video encryption

Certification

Certifications

CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU

Power

Power Supply

12 VDC

Power Consumption

Basic: 2.2 W (12 VDC); Max. (H.265+warm light intensity): 5.4 W (12 VDC)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–30 °C to +60 °C (-22°F to +140°F)

Storage Humidity

≤95%

Protection

IP67

Structure

Casing Material

Metal + plastic

Product Dimensions

131.0 mm × 78.4 mm × 97.2 mm (5.47″ ×4.80″ × 3.83″) (L × W × H)

Net Weight

254.5 g (0.56 lb)

Gross Weight

503 g (1.11 lb)

Get A Good Price On The Dahua F4C-LED 4MP Wi-Fi Camera from Orient CCTV today!

The Dahua F4C-LED 4MP WiFi camera features a 2-MP 1/3″ CMOS image sensor that captures high-definition images even in low light, outputting a maximum resolution of 1920 × 1080 at 25/30 fps. It utilizes the H.265 codec for high compression rates while maintaining ultra-low bit rates.

Equipped With Built-In Warm Light and Supports SMART H.264+/H.265+

The advanced sensor is equipped with a built-in warm light feature, capable of illuminating areas up to an impressive distance of 30 meters. Additionally, the camera supports SMART H.264+/H.265+ coding to ensure adaptability across various bandwidth and storage environments, enhancing its versatility.

Advanced Capabilities

This technology’s advanced capabilities encompass various features such as DWDR (Digital Wide Dynamic Range), 3D noise reduction (NR), HLC (High Light Compensation), BLC (Back Light Compensation), and digital watermarking, providing exceptional versatility for a wide range of monitoring scenarios.

Next-Level Security

For security, it features abnormality detection for motion, video tampering, audio disconnection, IP conflicts, illegal access, and human detection (SMD). The device supports a maximum of 256GB microSD card and has a built-in microphone. 12 VDC powers it and offers IP67 protection for durable outdoor use.

Highlights

• AI Functions: Human Detection
• IP Rating: IP67
• Scene: Indoor and outdoor
• Megapixels: 4MP
• TF Card: None
• Power Supply: Normal
• Storage: 256GB
